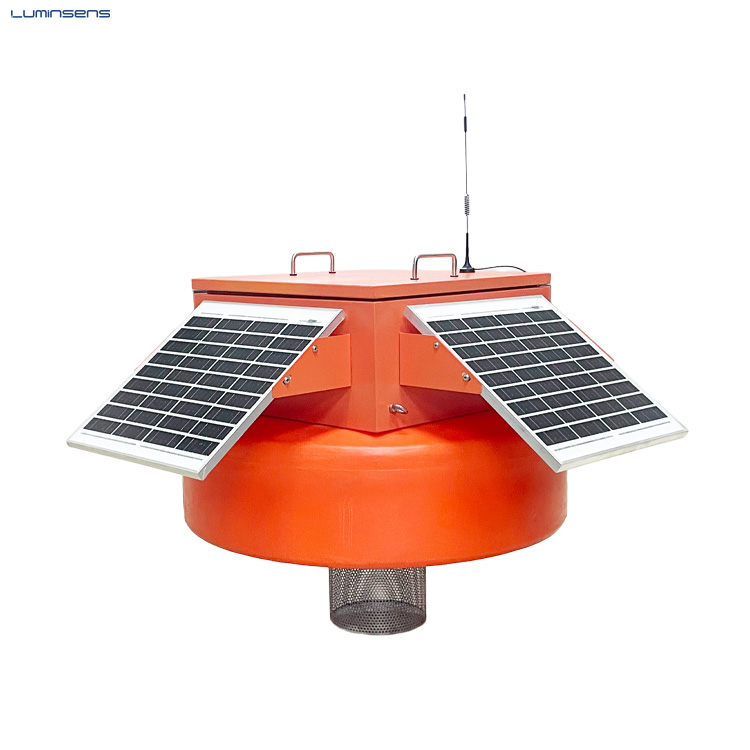

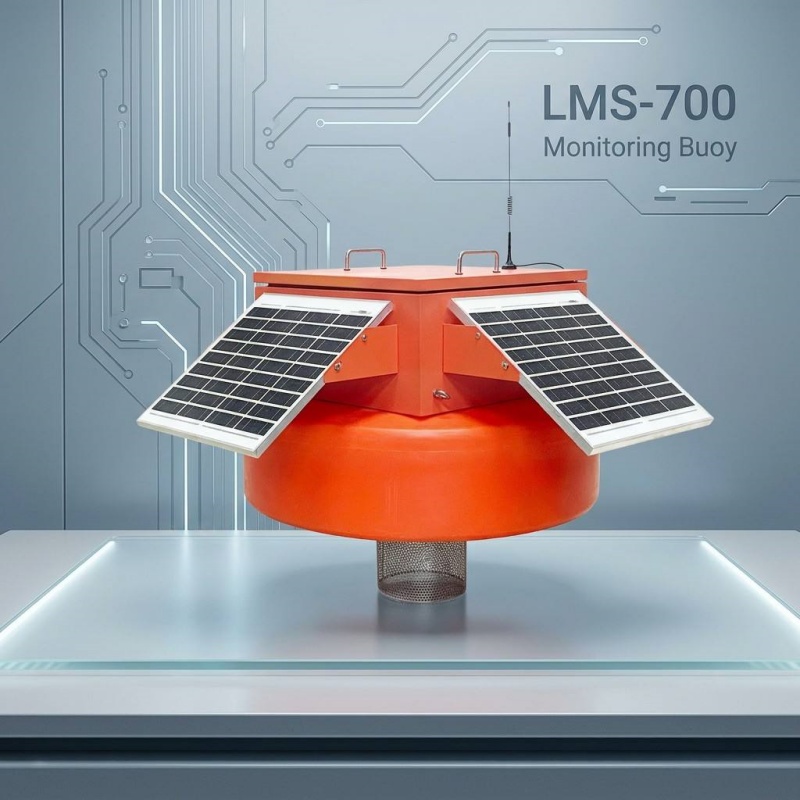

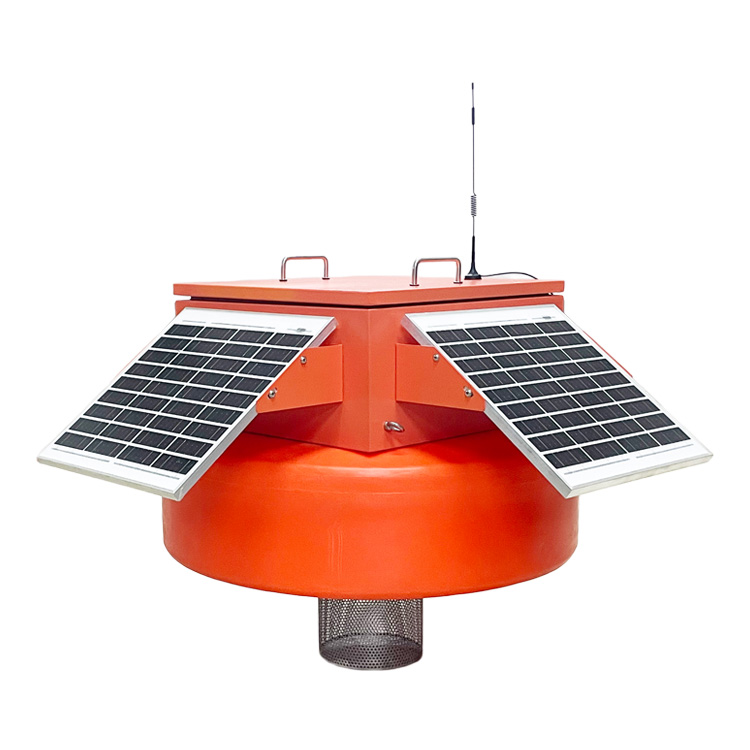

60w Solar Multi Parameter Water Quality Monitoring Buoy
Product Paramenters
|
Name |
Parameters |
|
Model |
LMS-700 |
|
Output signal |
RS-485(Modbus/RTU protocol) 4G |
|
Measurement elements |
Water temperature, pH, conductivity, dissolved oxygen, turbidity and other parameters |
|
Working conditions |
0~50 ℃ |
|
Power |
Solar power supply: 60W solar panel + 45Ah lithium battery |
|
Dimensions |
Diameter 700mm, height 600mm |
|
Structure composition |
Foundation support, power supply system, monitoring system |
|
buoy material |
corrosion-resistant plastic |
|
Filter material |
304 stainless steel |
|
Number of probes |
4 or more |
|
Endurance |
Continuous rainy days for 7 days |
Product Features

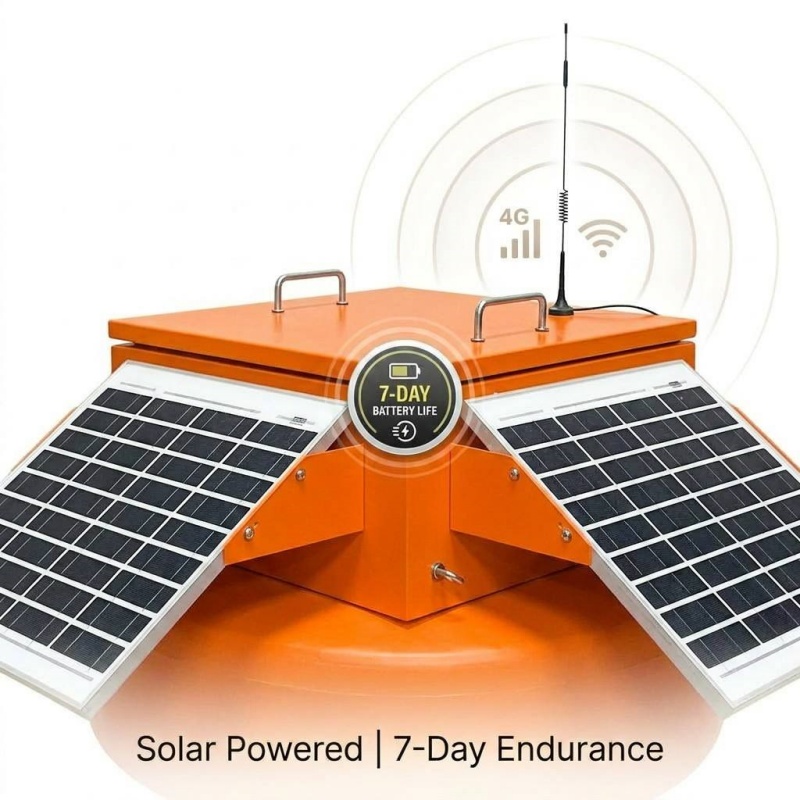

1.Solar Off Grid Self Power System for Unattended Long Term Outdoor Monitoring
Built in 60W high efficiency solar panel and 45Ah large capacity lithium battery, the floating monitoring buoy supports 7 days continuous operation under rainy weather without external power supply. It completely solves the power failure trouble of outdoor water quality monitoring equipment, realizes fully unattended all weather data collection, saves expensive cable laying and external power transformation investment for your environmental monitoring projects.
Built in 60W high efficiency solar panel and 45Ah large capacity lithium battery, the floating monitoring buoy supports 7 days continuous operation under rainy weather without external power supply. It completely solves the power failure trouble of outdoor water quality monitoring equipment, realizes fully unattended all weather data collection, saves expensive cable laying and external power transformation investment for your environmental monitoring projects.

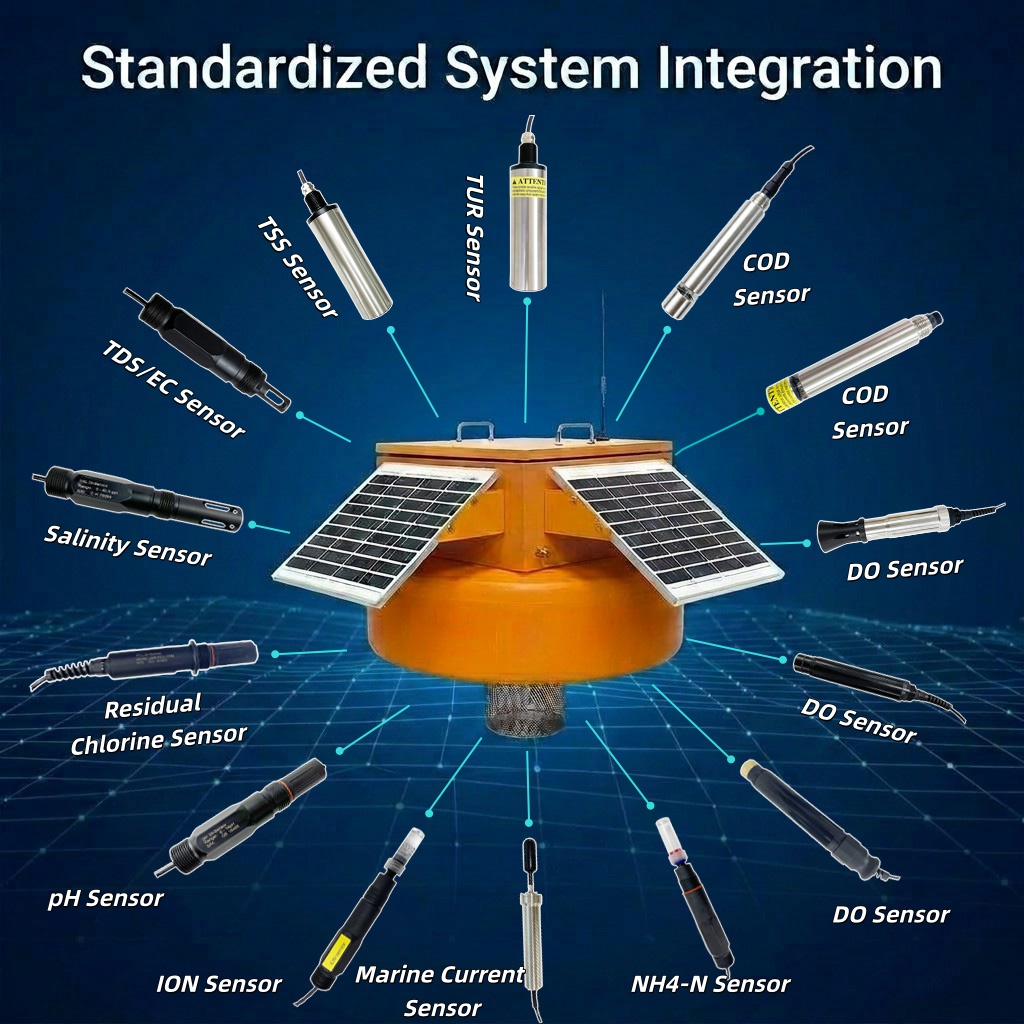

2.Expandable Multi Probe Design to Meet Diversified Water Quality Detection Demands
The buoy reserve multiple sensor interfaces and supports 4 or more replaceable probes, compatible with water temperature pH conductivity dissolved oxygen turbidity five core water quality parameters. You can freely match sensors according to different water bodies such as aquaculture ponds rivers lakes and oceans, one device adapts all monitoring scenes without purchasing multiple sets of monitoring equipment.
The buoy reserve multiple sensor interfaces and supports 4 or more replaceable probes, compatible with water temperature pH conductivity dissolved oxygen turbidity five core water quality parameters. You can freely match sensors according to different water bodies such as aquaculture ponds rivers lakes and oceans, one device adapts all monitoring scenes without purchasing multiple sets of monitoring equipment.

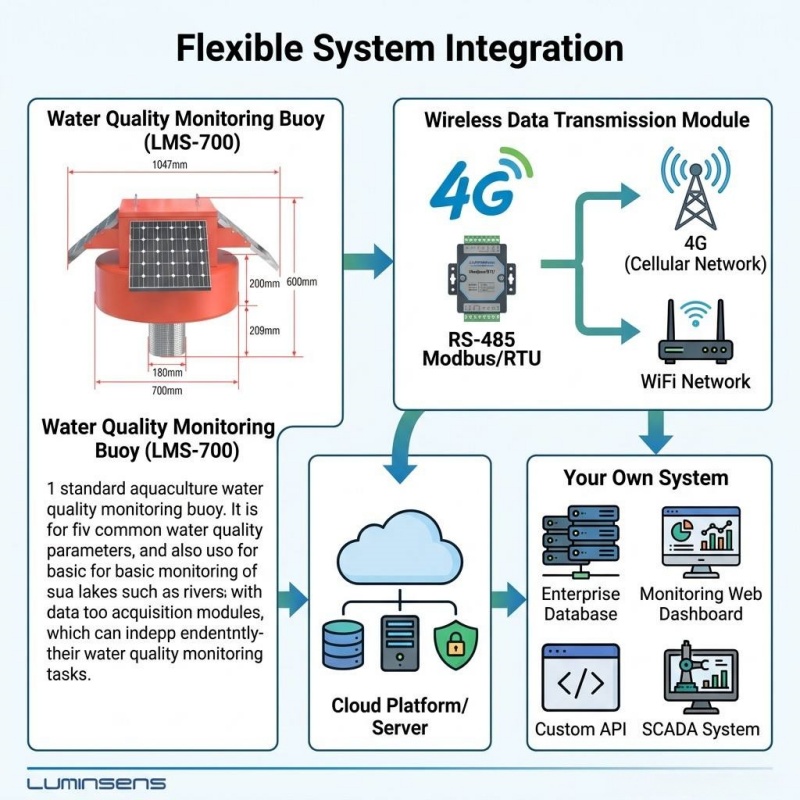

3.4G RS485 Modbus Dual Signal Output for Easy Connection With Your Control Platform
Equipped with 4G wireless transmission and RS485 Modbus RTU wired communication dual output modes, monitoring data can be synchronously uploaded to remote cloud server, mobile terminal, PLC and DCS control system. It avoids data transmission barriers of single signal equipment, enables you to view real time water quality data anytime anywhere and realize automatic early warning of abnormal water quality.
Equipped with 4G wireless transmission and RS485 Modbus RTU wired communication dual output modes, monitoring data can be synchronously uploaded to remote cloud server, mobile terminal, PLC and DCS control system. It avoids data transmission barriers of single signal equipment, enables you to view real time water quality data anytime anywhere and realize automatic early warning of abnormal water quality.

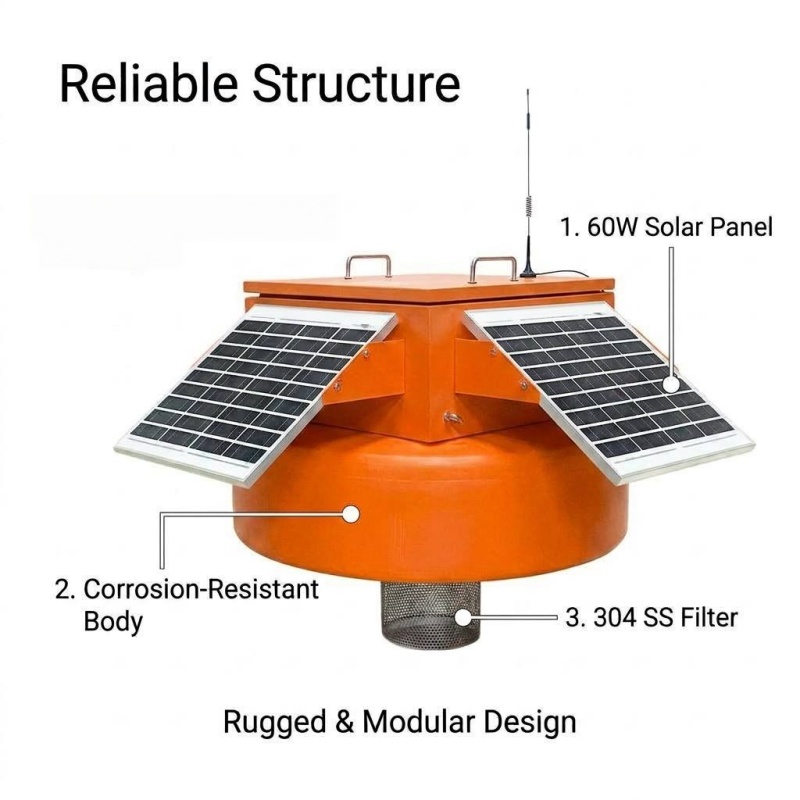

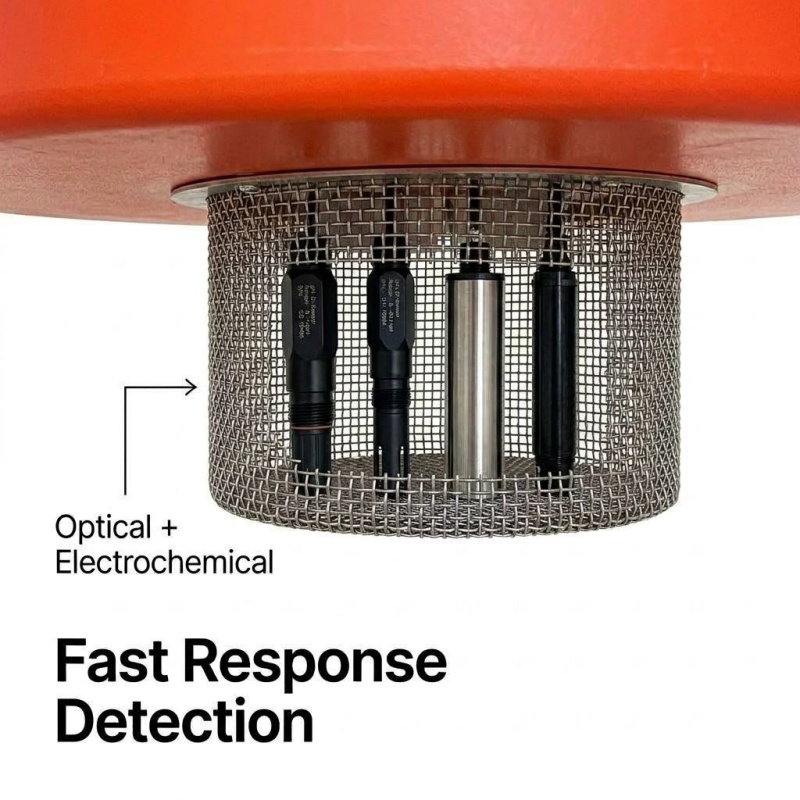

4.Corrosion Resistant Plastic Buoy Body & 304 Stainless Steel Filter for Long Service Life
The main floating body adopts anti UV anti aging corrosion resistant engineering plastic, matched with 304 stainless steel anti sediment filter probe housing. It can resist seawater acid and alkali wastewater long term erosion, effectively block sediment algae to protect internal sensors, reduce frequent probe replacement frequency and cut your long term equipment maintenance expenses.
The main floating body adopts anti UV anti aging corrosion resistant engineering plastic, matched with 304 stainless steel anti sediment filter probe housing. It can resist seawater acid and alkali wastewater long term erosion, effectively block sediment algae to protect internal sensors, reduce frequent probe replacement frequency and cut your long term equipment maintenance expenses.

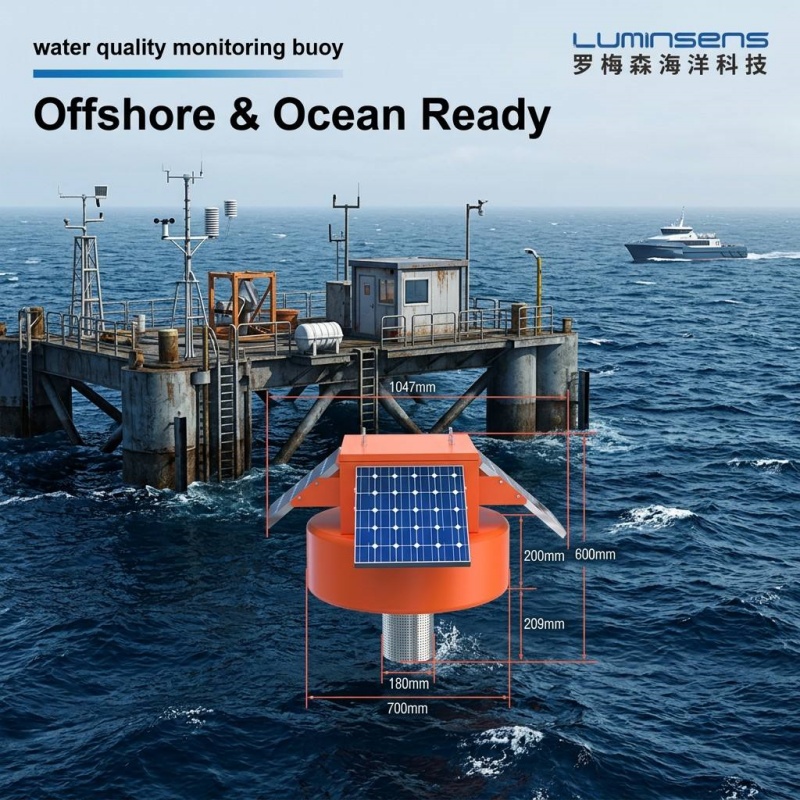

5.Compact All In One Floating Structure With Simple Installation to Save Construction Time
Integrated design of floating support power supply and monitoring system, overall size 700mm diameter 600mm height with small floor space. No complicated fixing frame or complicated wiring is required during on site deployment, one person can complete placement and commissioning within half an hour, greatly shortening the construction cycle of your water environment monitoring project.
Integrated design of floating support power supply and monitoring system, overall size 700mm diameter 600mm height with small floor space. No complicated fixing frame or complicated wiring is required during on site deployment, one person can complete placement and commissioning within half an hour, greatly shortening the construction cycle of your water environment monitoring project.
6.Low Operation & Maintenance Cost to Reduce Your Long Term Project Investment
The whole machine features low power consumption and long standby cycle, the collector service life reaches more than 2 years and the probe can be replaced separately with 1 year service life. No daily manual patrol inspection is required, all data is uploaded automatically, which greatly reduces labor input for routine inspection and cuts the overall operating cost of aquaculture and environmental protection projects.
The whole machine features low power consumption and long standby cycle, the collector service life reaches more than 2 years and the probe can be replaced separately with 1 year service life. No daily manual patrol inspection is required, all data is uploaded automatically, which greatly reduces labor input for routine inspection and cuts the overall operating cost of aquaculture and environmental protection projects.

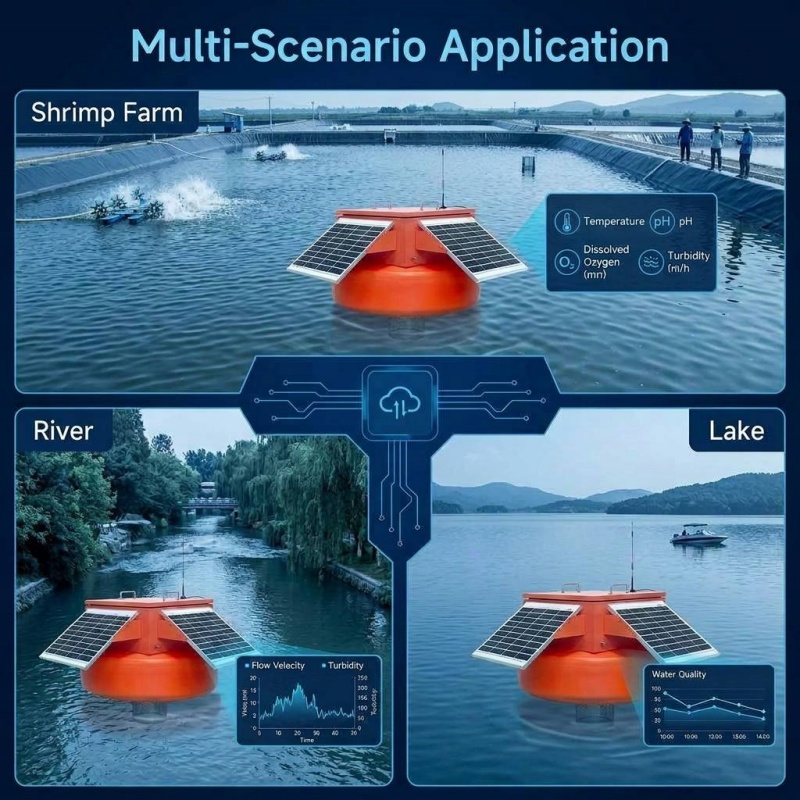

Application

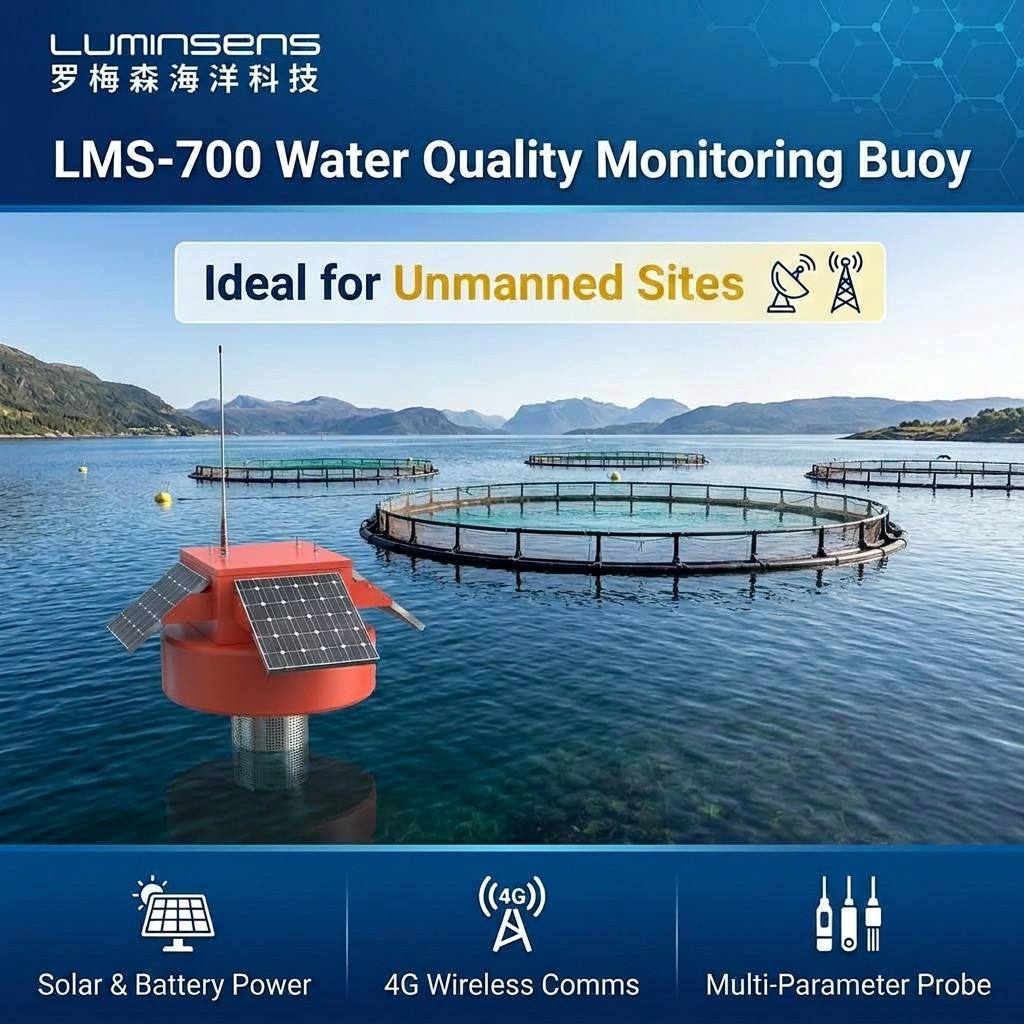

1.Aquaculture Breeding
Ideal for shrimp ponds, fish farms, crab culture pools and offshore mariculture zones. It realizes 24-hour unattended water quality tracking, automatically sends abnormal alerts for low dissolved oxygen and acid-base imbalance, stabilizes breeding water environment and cuts livestock mortality costs.
Ideal for shrimp ponds, fish farms, crab culture pools and offshore mariculture zones. It realizes 24-hour unattended water quality tracking, automatically sends abnormal alerts for low dissolved oxygen and acid-base imbalance, stabilizes breeding water environment and cuts livestock mortality costs.
2.Inland Surface Water Ecological Supervision
Applicable to urban rivers, scenic lakes, drinking water reservoirs and wetland parks. It continuously collects full water quality data to trace pollution sources, predict algae outbreaks and provide data basis for water ecological protection and water resource scheduling.
Applicable to urban rivers, scenic lakes, drinking water reservoirs and wetland parks. It continuously collects full water quality data to trace pollution sources, predict algae outbreaks and provide data basis for water ecological protection and water resource scheduling.

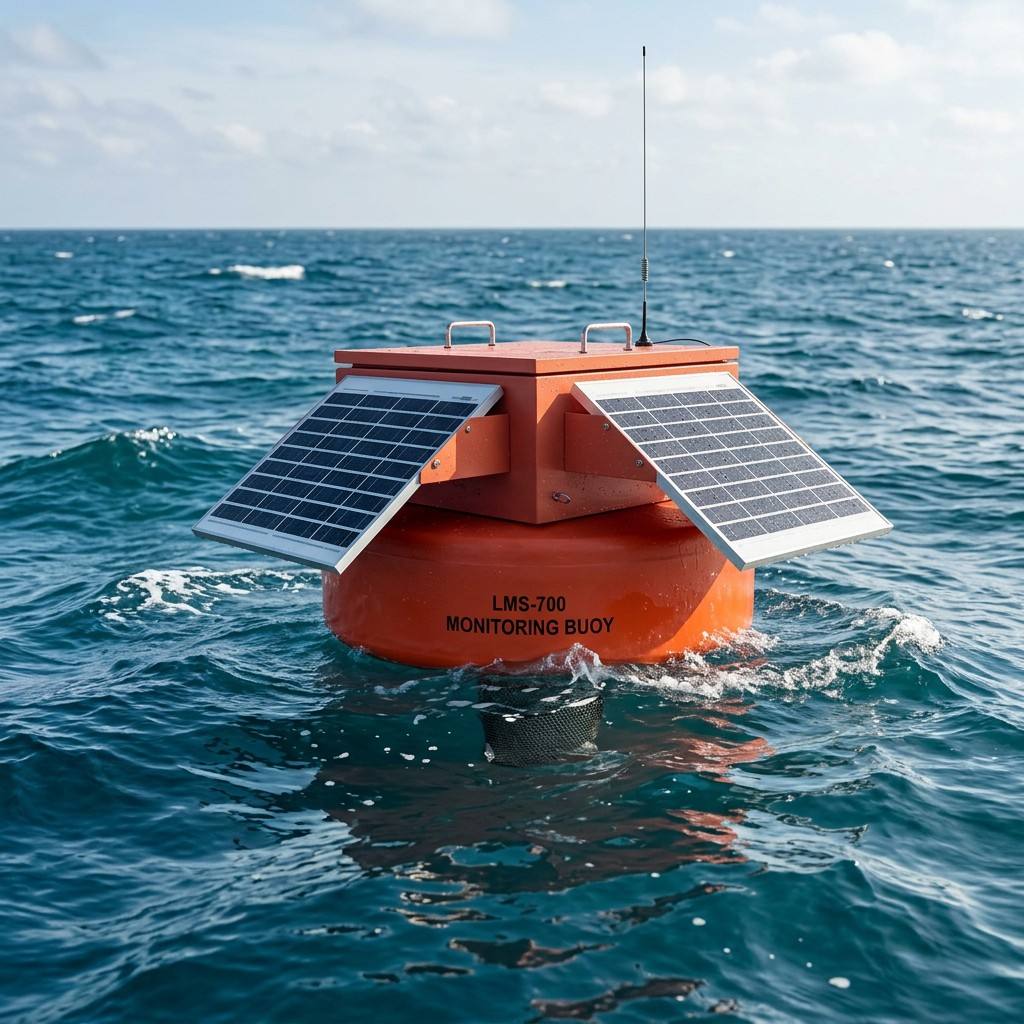

3.Coastal & Offshore Marine Monitoring
Corrosion-resistant buoy body adapts to seawater environment. Widely used in coastal waters, tidal flats and offshore aquaculture areas, it monitors seawater water quality in real time to warn red tide, offshore pollution and coastal eutrophication risks.
Corrosion-resistant buoy body adapts to seawater environment. Widely used in coastal waters, tidal flats and offshore aquaculture areas, it monitors seawater water quality in real time to warn red tide, offshore pollution and coastal eutrophication risks.
4.Sewage Outlet & Industrial Wastewater Monitoring
Deploy at factory wastewater outlets, rural domestic sewage discharge points and sewage treatment plant outfalls. Long-term automatic data recording helps environmental departments supervise pollution discharge standards and track illegal sewage behavior.
Deploy at factory wastewater outlets, rural domestic sewage discharge points and sewage treatment plant outfalls. Long-term automatic data recording helps environmental departments supervise pollution discharge standards and track illegal sewage behavior.
5.Flood Control & Hydrological Observation
Match flow velocity sensors to monitor water level, turbidity and water quality changes during flood seasons. Provide real-time hydrological and water quality data for flood prevention, disaster assessment and emergency disposal.
Match flow velocity sensors to monitor water level, turbidity and water quality changes during flood seasons. Provide real-time hydrological and water quality data for flood prevention, disaster assessment and emergency disposal.
6.Landscape Water & Man-made Lake Maintenance
Used for community artificial lakes, park ornamental water bodies and golf course landscape ponds. Timely reflect nitrogen and phosphorus excess, avoid odor and algae reproduction, reduce manual water maintenance frequency.
Used for community artificial lakes, park ornamental water bodies and golf course landscape ponds. Timely reflect nitrogen and phosphorus excess, avoid odor and algae reproduction, reduce manual water maintenance frequency.
