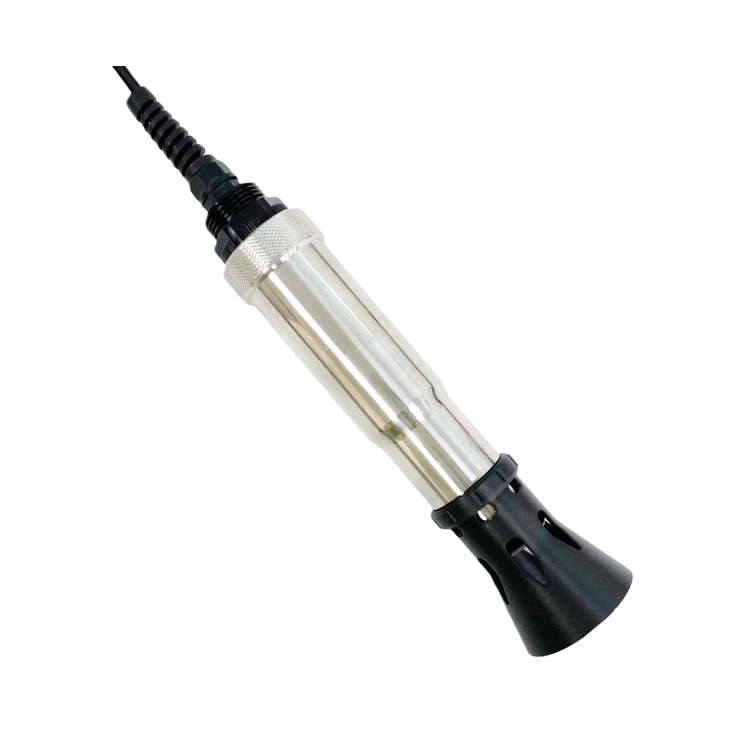

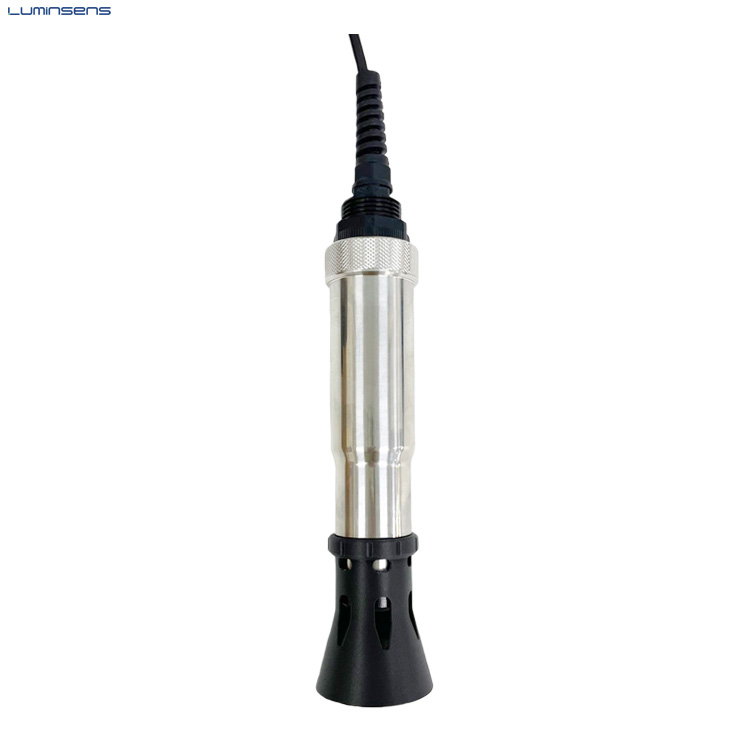

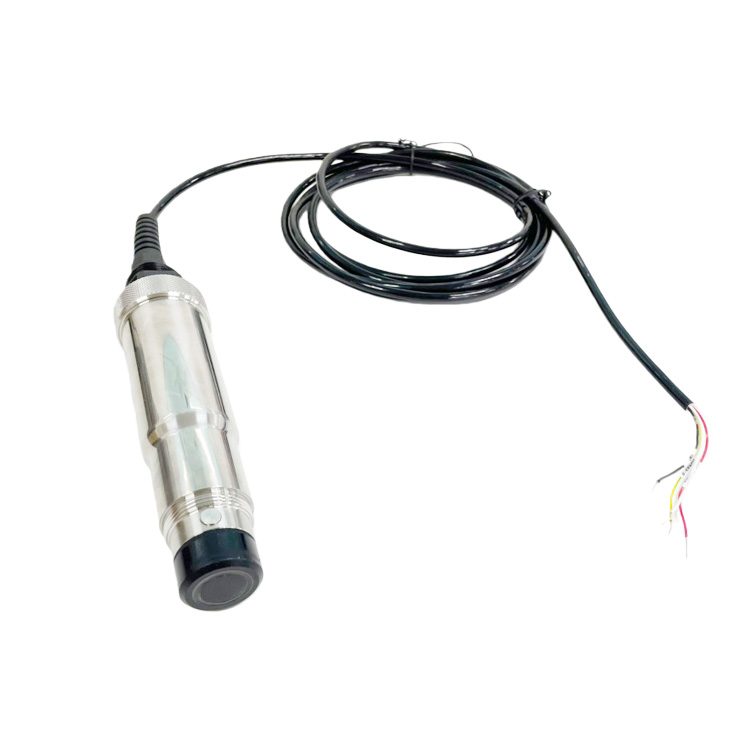

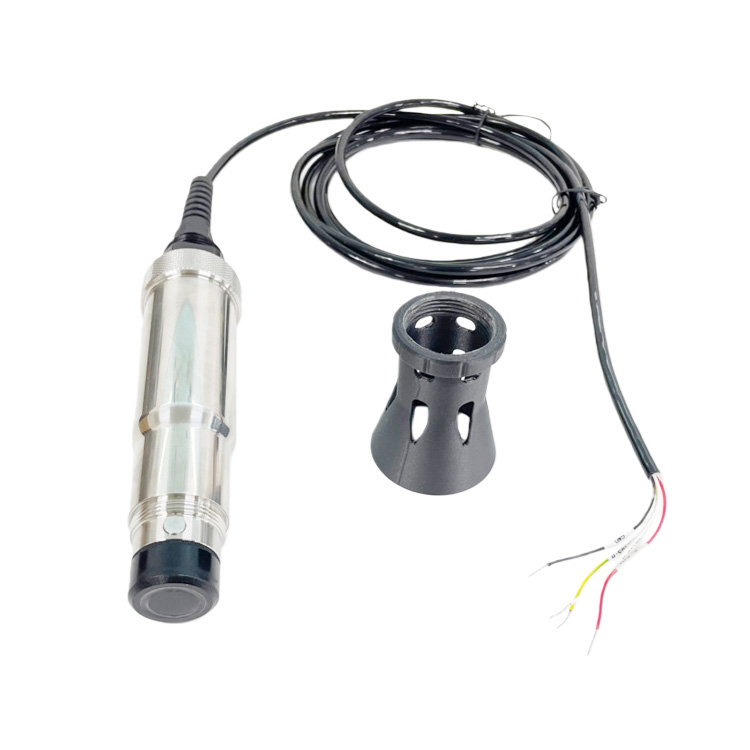

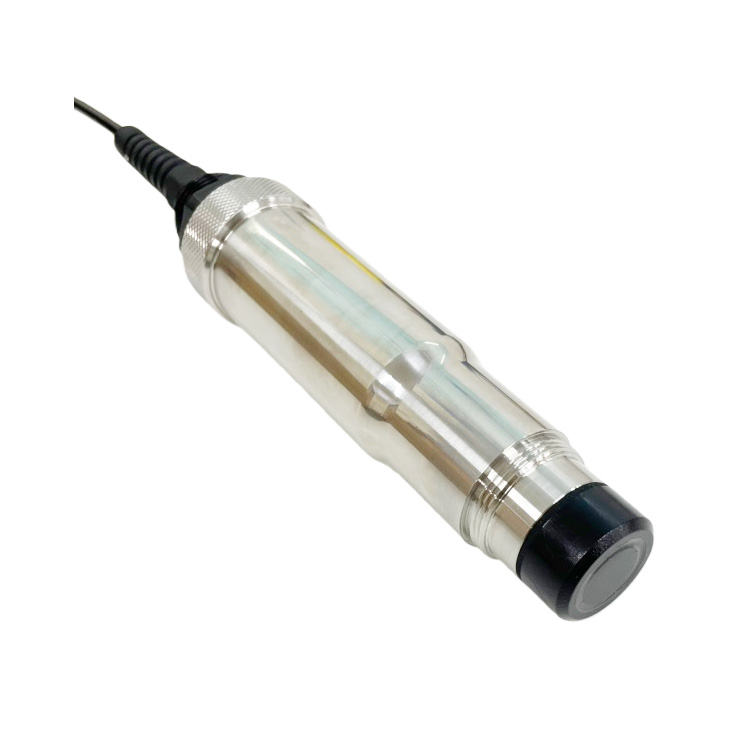

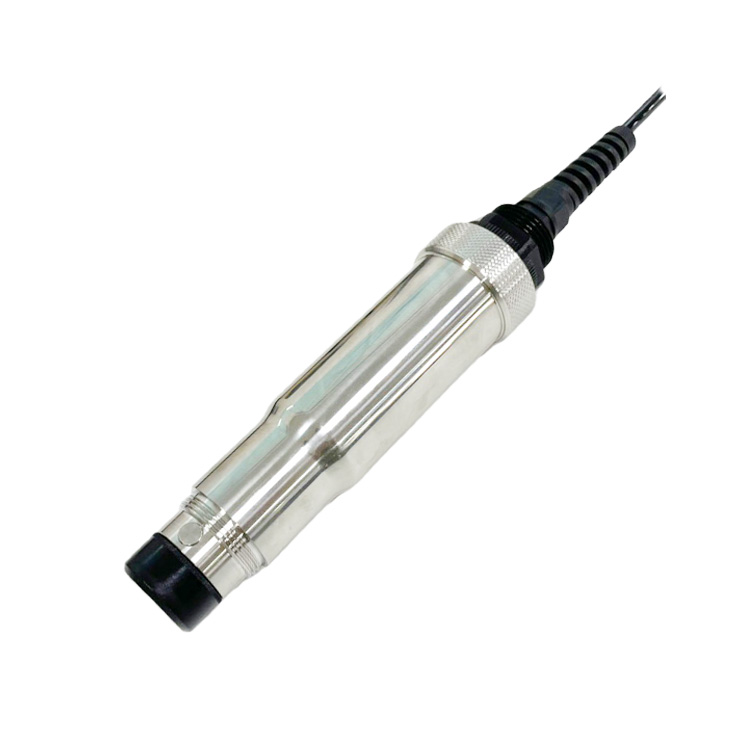

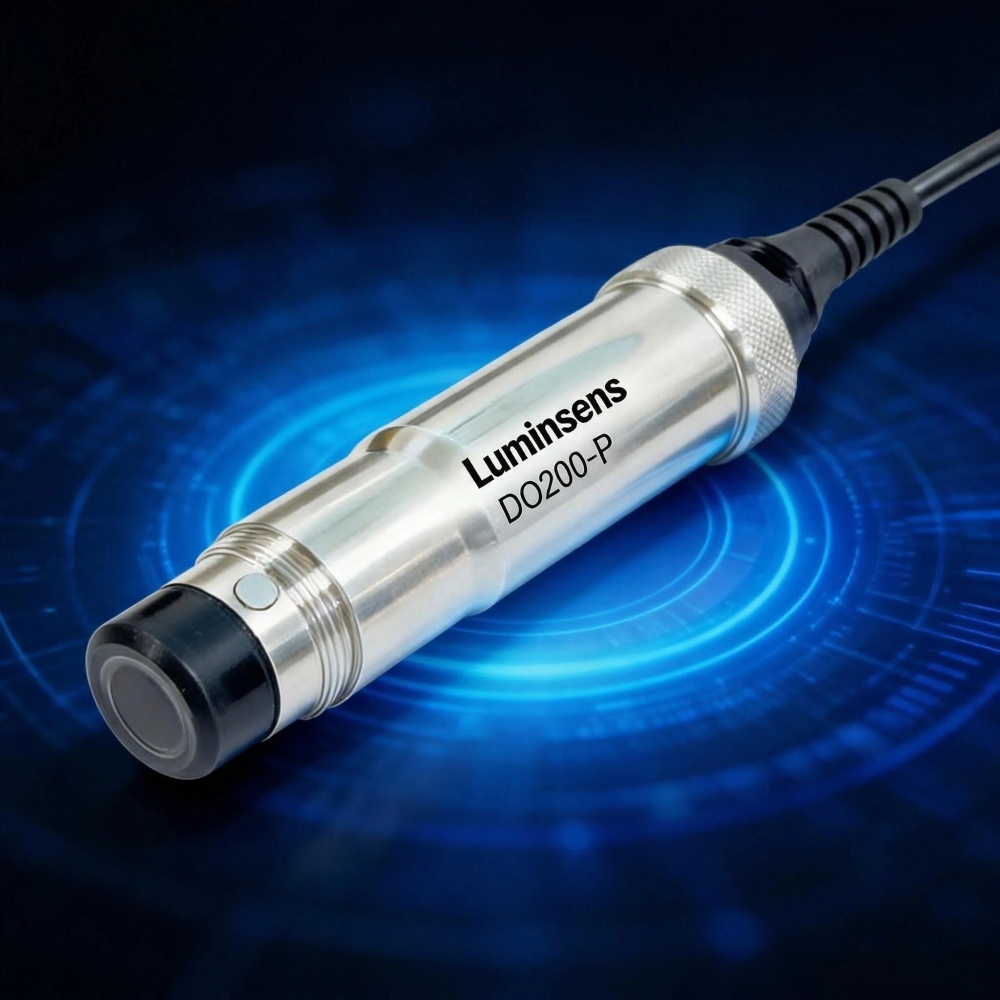

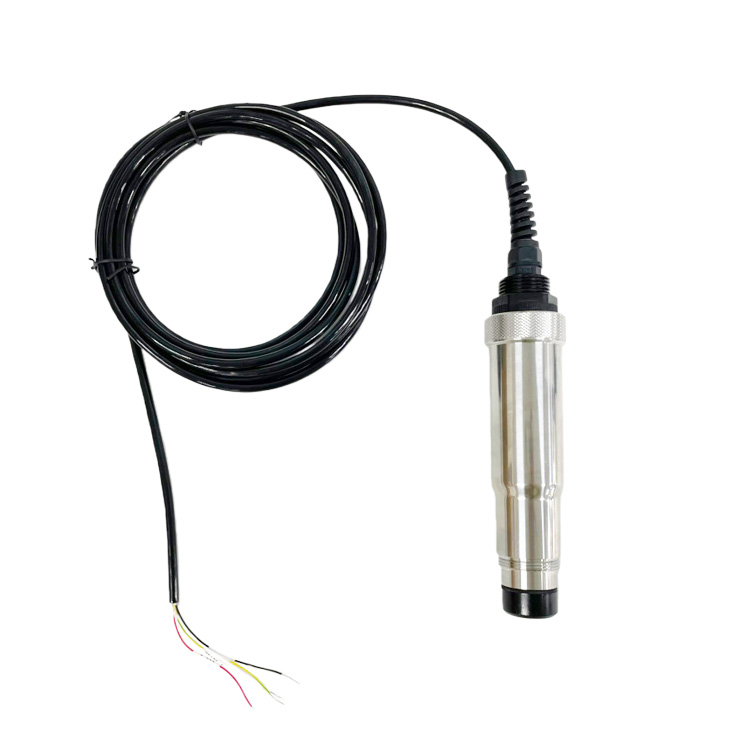

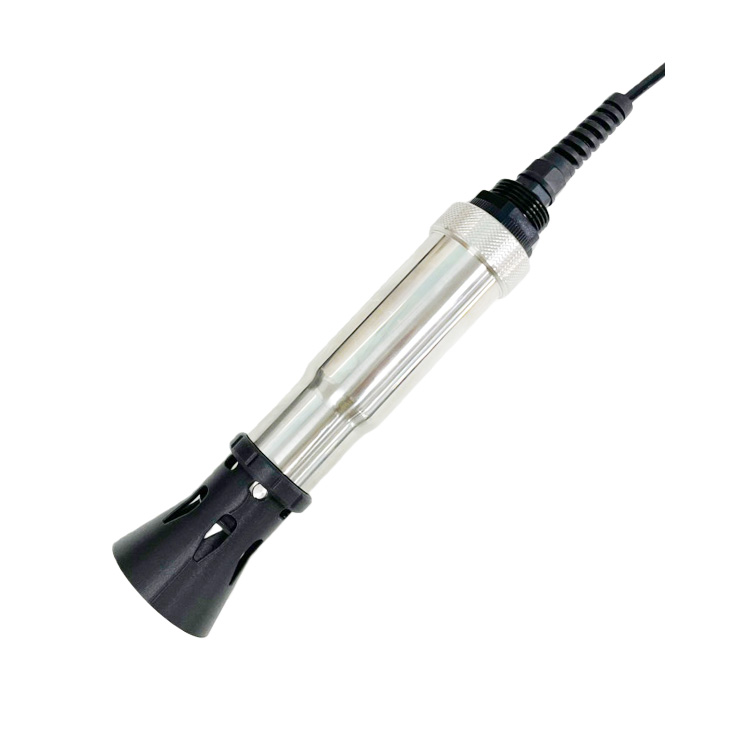

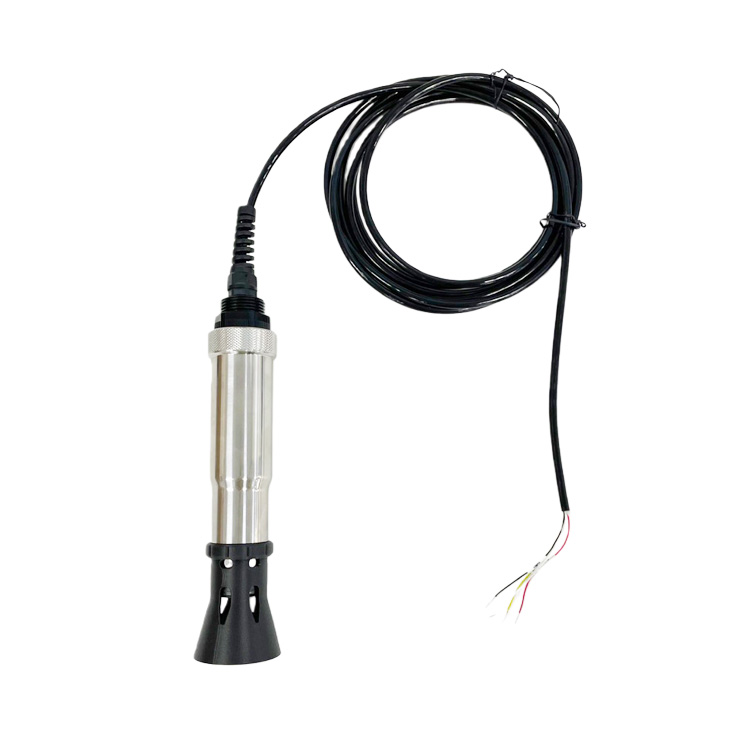

Fluorescent Dissolved Oxygen Sensor 50mg/L 316L DO Meter
Product Paramenters
|
Product Name |
Dissolved Oxygen Sensors |
|
Model |
LMS-DO200-P |
|
Measurement Method |
Fluorescent Method |
|
Respond Time |
T90<60s |
|
Range |
0～60℃、0～50mg⁄L |
|
Accuracy |
±0.15~0.3mg/L |
|
Temperature Accuracy |
<0.2℃ |
|
Working Temperature |
0～50℃ |
|
Storage Temperature |
-5～70℃ |
|
Power |
9-24VDC（Recommend12 VDC） |
|
Material |
316L Stainless Steel |
|
Size |
φ36mm*200mm |
|
Sensor Interface Supports |
RS-485, MODBUS protocol |
|
Applications |
Special for high-end intensive aquaculture, industrial water treatment, municipal sewage monitoring; Equipped with imported optical components and ultra-sensitive photodetector, featuring ultra-fast response, ultra-high precision and ultra-wide range, free of daily maintenance with excellent corrosion and fouling resistance. |
Product Features

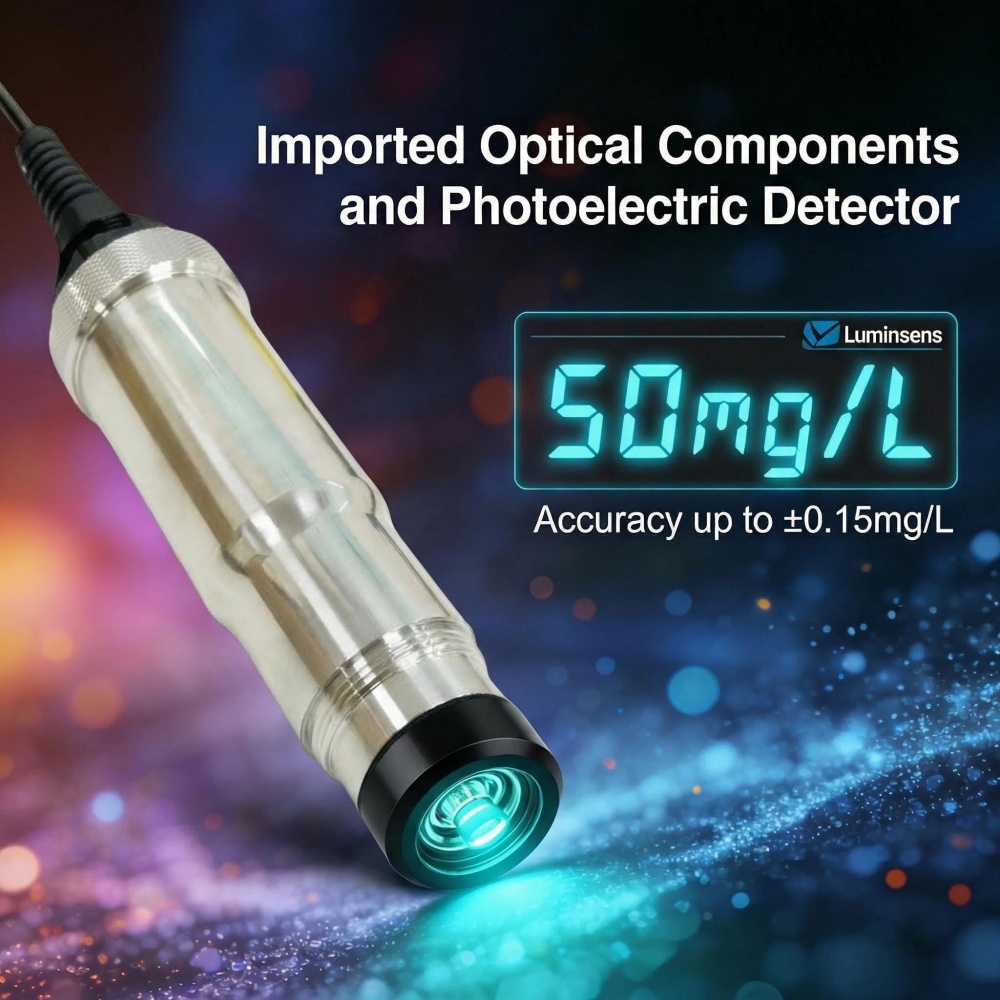

1.Imported Optical Core Components:
Adopts top-grade imported optical elements and ultra-sensitive photoelectric detectors, with ultra-high sensitivity to capture the slightest changes in dissolved oxygen concentration, ensuring the authenticity and reliability of monitoring data in ultra-low and ultra-high DO concentration environments.
Adopts top-grade imported optical elements and ultra-sensitive photoelectric detectors, with ultra-high sensitivity to capture the slightest changes in dissolved oxygen concentration, ensuring the authenticity and reliability of monitoring data in ultra-low and ultra-high DO concentration environments.
2.Ultra-fast Response & Super High Precision:
T90 response time is less than 60s, far exceeding the industry average, and the dissolved oxygen measurement accuracy reaches ±0.15~0.3mg/L with temperature accuracy <0.2℃, realizing real-time and high-precision DO monitoring for dynamic water bodies.
T90 response time is less than 60s, far exceeding the industry average, and the dissolved oxygen measurement accuracy reaches ±0.15~0.3mg/L with temperature accuracy <0.2℃, realizing real-time and high-precision DO monitoring for dynamic water bodies.
3.Ultra-wide Range for Diversified Scenarios:
Breaks the traditional DO measurement limit, supporting an ultra-wide range of 0~50mg/L, suitable for both low-oxygen sewage treatment and high-oxygen aquaculture aeration systems, meeting the diverse monitoring needs of different industries.
Breaks the traditional DO measurement limit, supporting an ultra-wide range of 0~50mg/L, suitable for both low-oxygen sewage treatment and high-oxygen aquaculture aeration systems, meeting the diverse monitoring needs of different industries.
4.316L Stainless Steel Corrosion-resistant Structure:
The whole body is made of high-purity 316L stainless steel, with excellent resistance to salt corrosion, acid and alkali erosion and mechanical wear, and can be fully immersed in harsh water bodies for long-term continuous work without structural damage.
The whole body is made of high-purity 316L stainless steel, with excellent resistance to salt corrosion, acid and alkali erosion and mechanical wear, and can be fully immersed in harsh water bodies for long-term continuous work without structural damage.
5.Maintenance-free Fluorescent Membrane Technology:
The surface is coated with a high-density anti-fouling fluorescent membrane, which inhibits the attachment of microorganisms and impurities, eliminates the need for regular cleaning and membrane replacement in daily use, and truly realizes zero maintenance of the sensor.
The surface is coated with a high-density anti-fouling fluorescent membrane, which inhibits the attachment of microorganisms and impurities, eliminates the need for regular cleaning and membrane replacement in daily use, and truly realizes zero maintenance of the sensor.
6.Intelligent Temperature Compensation & Easy Integration:
Built-in high-precision temperature sensor with intelligent real-time temperature compensation, ensuring stable and accurate measurement data under large temperature changes; supports RS-485/MODBUS standard protocol, which can be seamlessly connected to various water quality monitoring systems and realize one-click data transmission and remote control.
Built-in high-precision temperature sensor with intelligent real-time temperature compensation, ensuring stable and accurate measurement data under large temperature changes; supports RS-485/MODBUS standard protocol, which can be seamlessly connected to various water quality monitoring systems and realize one-click data transmission and remote control.
7.Energy-saving & Stable Power Supply:
Adapts to 9-24VDC wide voltage power supply, recommended 12VDC low-voltage power supply, with low power consumption and stable operation, no power fluctuation interference, suitable for on-site outdoor monitoring with limited power supply conditions.
Adapts to 9-24VDC wide voltage power supply, recommended 12VDC low-voltage power supply, with low power consumption and stable operation, no power fluctuation interference, suitable for on-site outdoor monitoring with limited power supply conditions.
Application
1.High-end Intensive Aquaculture
It is the core monitoring equipment for high-end recirculating aquaculture systems (RAS), deep-sea mariculture and precious aquatic product breeding bases. The ultra-high precision and ultra-fast response can timely detect the slight changes of dissolved oxygen in the water body, avoid the hypoxia of precious aquatic products, optimize the aeration system operation, reduce energy consumption, and improve the breeding survival rate and economic benefits.
It is the core monitoring equipment for high-end recirculating aquaculture systems (RAS), deep-sea mariculture and precious aquatic product breeding bases. The ultra-high precision and ultra-fast response can timely detect the slight changes of dissolved oxygen in the water body, avoid the hypoxia of precious aquatic products, optimize the aeration system operation, reduce energy consumption, and improve the breeding survival rate and economic benefits.
2.Industrial Water Treatment
Ideal for DO monitoring in industrial wastewater treatment, chemical plant circulating water, power plant cooling water and other industrial water bodies. The ultra-wide range can adapt to the large fluctuation of dissolved oxygen in the water body during the industrial water treatment process, and the corrosion-resistant structure can resist the erosion of various chemical substances in the industrial water, ensuring long-term stable operation and providing accurate data support for industrial water quality up to standard.
Ideal for DO monitoring in industrial wastewater treatment, chemical plant circulating water, power plant cooling water and other industrial water bodies. The ultra-wide range can adapt to the large fluctuation of dissolved oxygen in the water body during the industrial water treatment process, and the corrosion-resistant structure can resist the erosion of various chemical substances in the industrial water, ensuring long-term stable operation and providing accurate data support for industrial water quality up to standard.
3.Municipal Sewage Monitoring
Suitable for the dissolved oxygen monitoring of municipal sewage treatment plants in the aerobic tank, anoxic tank and sedimentation tank links. The maintenance-free design saves the manual maintenance cost of the sewage plant, and the high precision can accurately reflect the treatment effect of the sewage biochemical system, helping the sewage plant to adjust the process parameters in time and improve the sewage treatment efficiency.
Suitable for the dissolved oxygen monitoring of municipal sewage treatment plants in the aerobic tank, anoxic tank and sedimentation tank links. The maintenance-free design saves the manual maintenance cost of the sewage plant, and the high precision can accurately reflect the treatment effect of the sewage biochemical system, helping the sewage plant to adjust the process parameters in time and improve the sewage treatment efficiency.
4.Natural Water Ecological Monitoring
It is used for the long-term monitoring of dissolved oxygen in rivers, lakes, reservoirs and other natural water bodies, as well as the ecological restoration water area. The ultra-sensitive detection performance can capture the subtle changes of water body DO caused by aquatic organisms and environmental factors, provide accurate and comprehensive data for water ecological environment evaluation and governance, and assist the construction of water ecological civilization.
It is used for the long-term monitoring of dissolved oxygen in rivers, lakes, reservoirs and other natural water bodies, as well as the ecological restoration water area. The ultra-sensitive detection performance can capture the subtle changes of water body DO caused by aquatic organisms and environmental factors, provide accurate and comprehensive data for water ecological environment evaluation and governance, and assist the construction of water ecological civilization.
